Choose your product
€839,00 * Incl. tax
This product is not on stock Delivered within 3-5 working days
Pros and Cons
  • Unique options for charging with your solar panels
  • You can manage the charger through an app on your phone
  • Also available as tethered version
  • The charger has no display
  • Wired load balancing only
  • The charger is not so small
Order even cheaper with combi solutions
Connection type: 1 phase, Maximum power: 16 amps
30mA Residual Current Circuit Breaker RCCB with Overcurrent Protection
€868,00 €858,00
One or two chargers: Two, Cable suspension system: No, Charger plate: 310x200-VRT
Design your own mounting pole
€1.138,00 €1.118,00
4 meter
Type 2 - Type 2 Charge Cable 32A 3 Phase, 4 to 12 meters
€1.018,00 €998,00

Technical specifications

Phase 3
Ampere 32A
Power 22kW
Dimensions 400x250x105mm
30mA AC earth leakage protection Yes
6mA DC earth leakage protection Yes
Connectivity Yes
Fixed cable No
Cable length(s) -
kWh meter built-in Yes
RFID reader No
Display No
OCPP version supported -

Functional specifications

Load balancing support Yes
Vehicle to grid No
Postponed charging Yes
Controllable with APP Yes
Charging with the sun Yes
Manual settlement of charging sessions Yes
Automatic settling of charging sessions No

Charge with 100% solar power

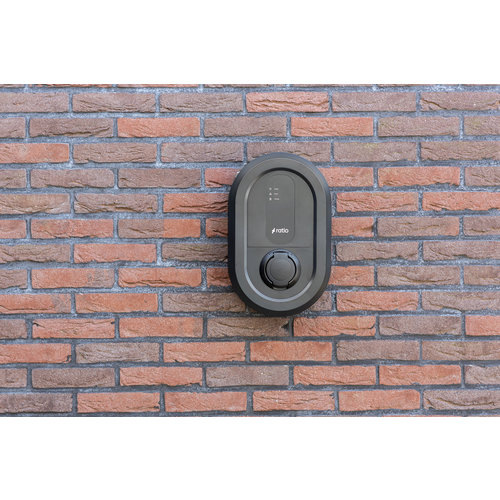

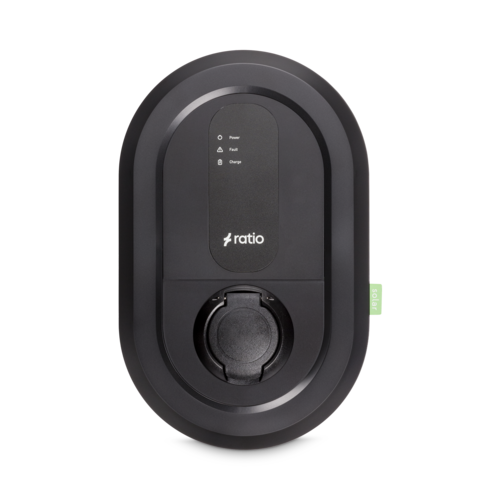

The Ratio Solar charging station is Ratio's top model of their latest extension EV chargers. This charging station not only comes with the Ratio app so you can access your charging station anytime, anywhere but it is also equipped with Dynamic Load Balancing as standard.

This gives you the ability to balance the charging of your car with the electrical consumption of the rest of the house or office ensuring maximum charging speeds without the risk of overloading your grid connection. Because of Ratio's special software the Load Balancing system can also detect if your solar panels are feeding the grid and then redirect that current to charge your car. This makes it possible to charge your car on 100% solar power generated by your own solar panels.

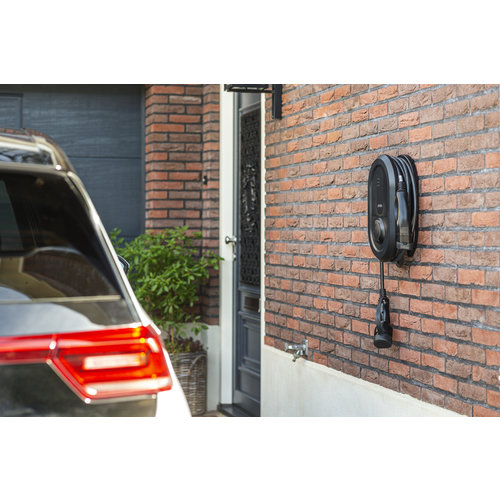

Designed and manufactured in the Netherlands, these Ratio chargers are well known for their very high quality, reliability and ease of use. This charging station meets all european quality and safety requirements and the clever design of the charging station ensures that you always have a place to hang your charging cable.
This charger comes in both 1 and 3 phase versions where the 3 phase version can also be used on 1 phase. This makes it possible to connect the charger to 1 phase first and upgrade your connection to 3 phase later if necessary.

With the Ratio App, you can

  • Gain insight into your current charging session
  • See an overview of your charging history
  • Choose the charging mode that suits you.
    • Charge 100% green and free of charge.
    • Charge from the grid or a combination of solar and grid power
  • Lock or unlock the charger
  • Set charging schedules
  • Choosing the 'Plug & Charge' mode: this way you can simply start charging without cards or authorisation!
  • The charger is easy to configure via the installer menu in the Ratio app

Main features

  • Choice of 1- or 3-phase version
  • Control the charger with your phone
  • Plug & Charge mode: charging without charge card or app
  • Static Load Balancing
  • Dynamic Load balancing
  • Earth fault protection: AC 30mA, DC 6mA
  • Beschermingsniveau IP54
  • 2 year warranty
  • 3 phase version also works on 1 phase

Documentation





  • Dimensions (lxbxh in mm):400x250x105
  • Cable length (in meters):-
  • Max Charging Speed in km/h:40 km/hour
  • Max Charging Speed in kW:7,4 kW
  • Plug type Car side:Type 2
  • Plug type Charge station side:Type 2
  • Cable Attached or Socket:Socket
  • Display:No
  • Phases:1 or 3
  • Amperage:32
  • Network Technologies Supported:Wifi en Bluetooth
  • Mobile app Support:Yes
  • Remote station management:Yes
  • Scheduled Charging:Yes
  • Colour:Black
  • RFID reader:No
  • Load Balancing:Yes
  • Solar charging:
  • Plug & Charge Enabled:Yes
  • Requires Professional Installation:Yes
  • IP Rating:IP54
  • Number of vehicles that can be charged:1
  • RCD type build in:30mA Type A
  • 6mA DC Current Detection:
  • Home Automation Support:No
  • MID certified meter:No
  • kWh meter Build in:No
  • Smart Tesla charge port opening :
