Choose your product
€599,00
We have 2 in stock Delivered within 3-5 working days
Pros and Cons
  • Very high quality charger
  • Very easy to use, just plug in your car and the charger starts charging
  • Also available as socketed version
  • This charger has no load balancing options
  • This charger has no connectivity options
  • The charger is not so small
Order even cheaper with combi solutions
One or two chargers: Two, Cable suspension system: No, Charger plate: 310x200-VRT
Design your own mounting pole
€898,00 €878,00
Connection type: 1 phase, Maximum power: 16 amps
30mA Residual Current Circuit Breaker RCCB with Overcurrent Protection
€628,00 €618,00
Cable holder and hanger for type 2 cables
€628,99 €619,00

Technical specifications

Phase 3
Ampere 32A
Power 22kW
Dimensions 400x250x105mm
30mA AC earth leakage protection Yes
6mA DC earth leakage protection Yes
Connectivity No
Fixed cable Yes
Cable length(s) 5m
kWh meter built-in No
RFID reader No
Display No
OCPP version supported -



Functional specifications

Load balancing support No
Vehicle to grid No
Postponed charging No
Controllable with APP No
Charging with the sun No
Manual settlement of charging sessions No
Automatic settling of charging sessions No

The highest quality of an advantageous choice

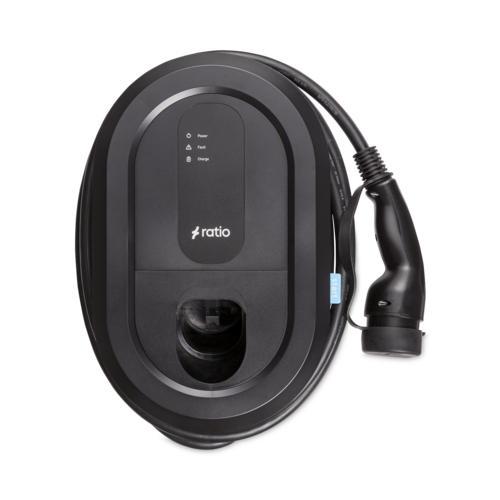

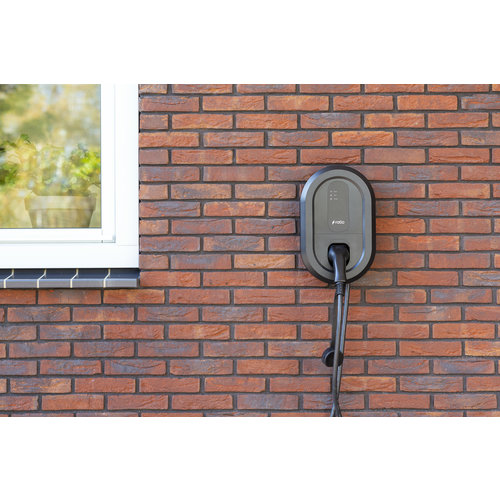

The Ratio Start is Ratio's entry-level EV Charger. The charging station is designed to be the easiest to use and install. No charging card or app is needed to start a charging session. Just plug in the car to start charging.

Designed and manufactured in the Netherlands, these Ratio chargers are well known for their very high quality, reliability and ease of use. This charging station meets all European quality and safety requirements and the clever design of the charging station ensures that you always have a place to hang your charging cable.
This charger comes in both 1 and 3 phase versions where the 3 phase version can also be used on 1 phase. This makes it possible to connect the charger to 1 phase first and upgrade your connection to 3 phase later if necessary.

Main features

  • Choice of 1- or 3-phase version
  • 5 meter type 2 cable
  • Plug & Charge: charging without charge card or app
  • Static Load Balancing - select the desired charging current with the rotary switch inside the charger
  • Earth fault protection: AC 30mA, DC 6mA
  • Level of protection IP
  • 2 year warranty
  • 3 phase version also works on 1 phase

Documentation

Find the Ratio charger that suits you best here.

  • Dimensions (lxbxh in mm):400x250x105
  • Cable length (in meters):5
  • Max Charging Speed in km/h:40 km/hour
  • Max Charging Speed in kW:7,4 kW
  • Plug type Car side:Type 2
  • Plug type Charge station side:Type 2
  • Cable Attached or Socket:Cable Attached
  • Display:No
  • Phases:1 or 3
  • Amperage:32
  • Network Technologies Supported:No
  • Mobile app Support:No
  • Remote station management:No
  • Scheduled Charging:No
  • Colour:Black
  • RFID reader:No
  • Load Balancing:No
  • Solar charging:
  • Plug & Charge Enabled:Yes
  • Requires Professional Installation:Yes
  • IP Rating:IP54
  • Number of vehicles that can be charged:1
  • RCD type build in:30mA Type A
  • 6mA DC Current Detection:
  • Home Automation Support:No
  • MID certified meter:No
  • kWh meter Build in:No
  • Smart Tesla charge port opening :
