Choose your product
€64,99
This product is not on stock Delivered within 15-20 business days

Safety and certification

All connectors bear the CE mark and have been subjected by TÜV to all necessary tests to ensure that our charging cables are safe for you and your vehicle. Furthermore, our products are also tested individually before they leave the factory.

What can I build with the plug?

This plug comes as part. This is NOT a complete charging cable. Other required parts must be purchased separately. This plug comes as a component including the correct resistance required for assembly. This is not a complete charging cable. You use the components offered here to mount a complete charging cable type 1 or type 2 for self-assembly. You can also search for other components such as plugs, charging cables and accessories such as wall mounts in our webshop. Please note that the other selected components also correspond to the maximum amplifier and phase of this component.

Use

This type 1 (female) plug with 32A is suitable for self-built charging cables Mode 2 and Mode 3. With the components offered here, you can mount a complete charging cable with self-assembly accessories. Also search for other components such as cables and wall mounts in cablesoolutions.shop.

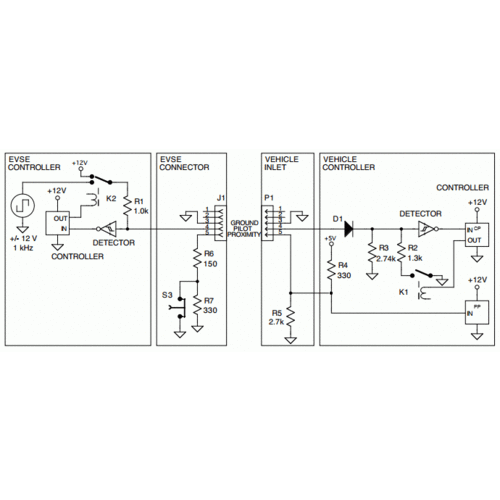

PE-PP resistance

All Type 1 connectors and charging cables have a resistance between the Earth (PE) and the Pilot Pin (PP). This way the charging station and the car can indicate:

  • that the plug has been placed
  • that the plug can therefore be locked
  • the measuring device of the cable and thus the maximum current

Each plug comes with the right resistance that fits the plug.

  • 16 ampere plugs have a resistance of 220 ohms
  • 32 ampere plugs have a resistance of 680 ohms

Please note that the pp-PE resistor must be installed at both ends of the cable.

What tools do I need?

This plug should be reduced to an EV charging cable, should be a 2.5mm2 (16A) or 6mm2(32A). Use the shrink bar. Like the ones below. In addition, you need a screwdriver, a strip iron and a clipper.

0640160035 Molex | WM17483-ND DigiKey Electronics

Where can I use this plug?

This plug is for the car side i.e. the car charging port. It does not fit into a charging point.

What is the optimal charging cable length?

If you use the charging cable in a fixed place, such as at home or at work, choose the optimal length for your situation. Usually that's 4 or 6 meters. If the cable is mainly used on the road or in different places (where another vehicle may be between the charging point and your vehicle), we recommend choosing a longer length: 6 or 8 meters is a good choice in this case.

How heavy is a charging cable?

The weight of the cable can be calculated by adding half a kilo per meter and one kilo for the two plugs. An 8 meter charging cable weighs about 5 kilograms. The exact weight can be seen in the characteristics of the respective product.

What are the charging speeds?

An overview of possible charging cable characteristics and their charging performance:

  1. 16A with 1 phase = max. 3.7kW
  2. 20A with 1 phase = max. 4.6 kW
  3. 32A with 1 phase = max. 7.4kW
  4. 16A with 3 phases = max. 11kW
  5. 32A with 3 phases = max. 22kW

Safety

Please take extreme care when building the charging cable in-house. It is recommended to carry out the construction only with sound prior knowledge or by a trained professional.

  • Bag included:No
  • Plug type Car side:Type 1
  • Plug type Charge station side:Only fits in car side
  • Cable Type:N/A
  • Number of phases:1
  • Amperage:16A or 32A
  • Cable diameter:
  • Length (in meters):N/A
  • Colour:Black/White
  • Plug-Design:clam shelled or molded
